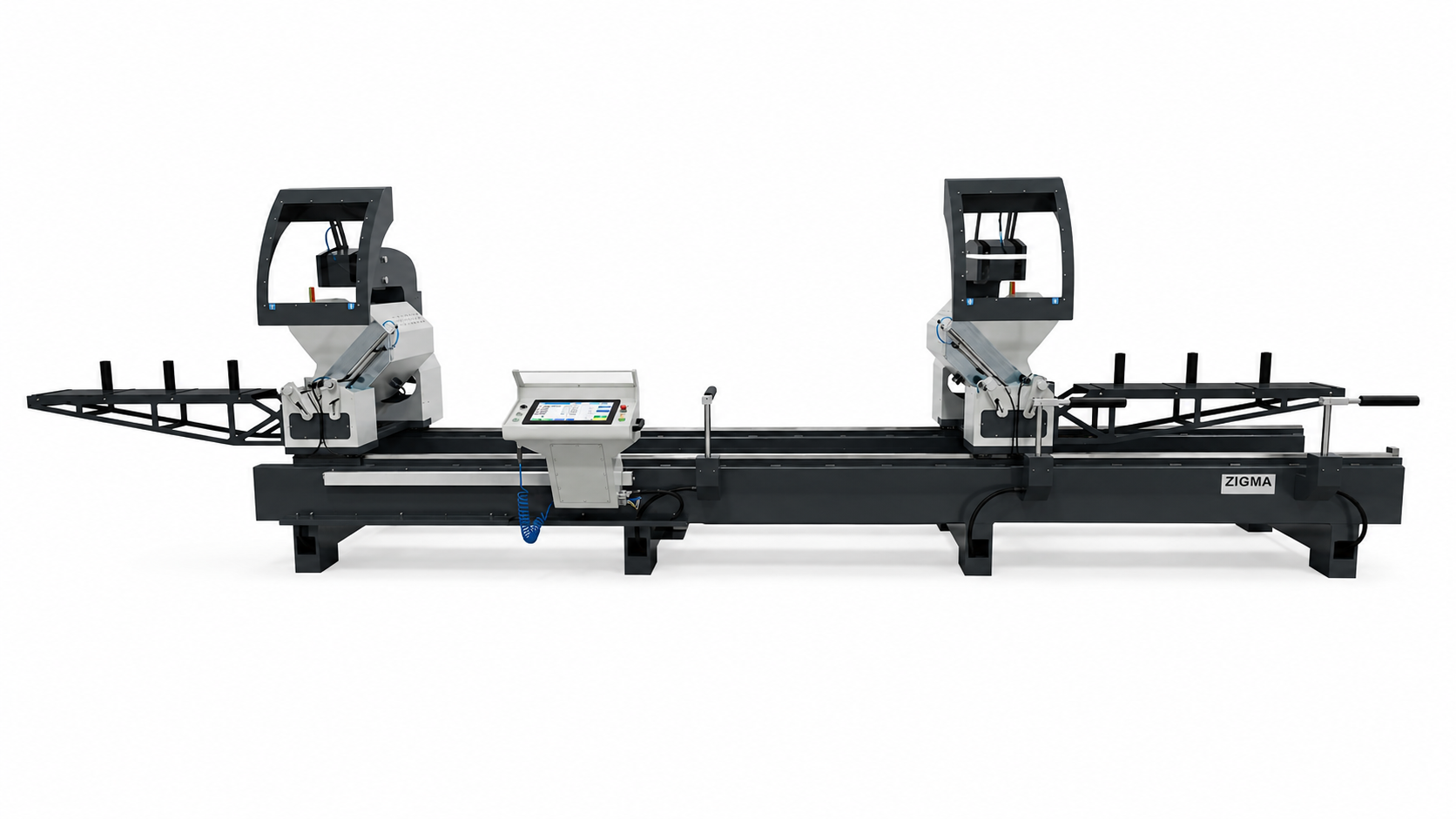

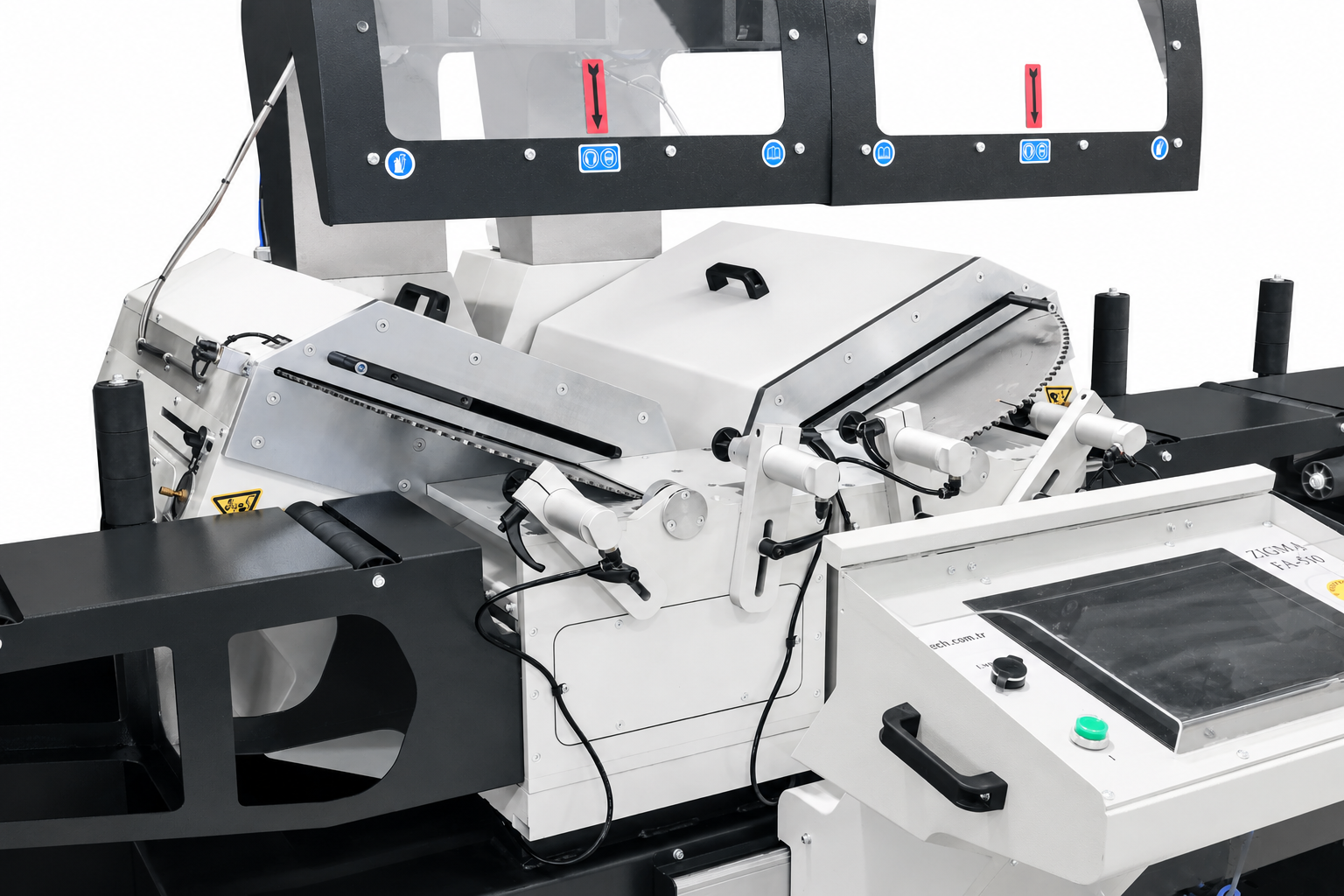

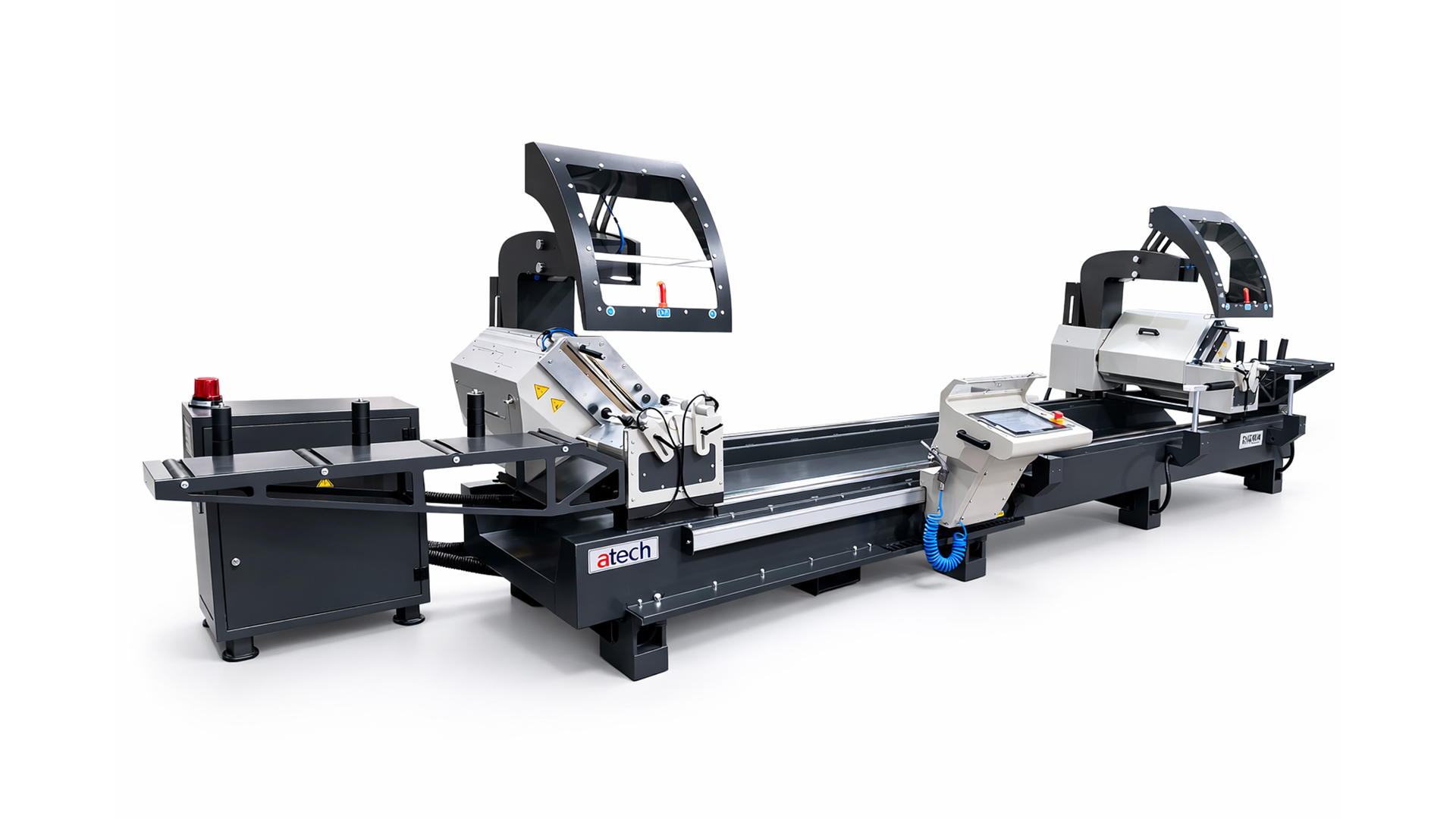

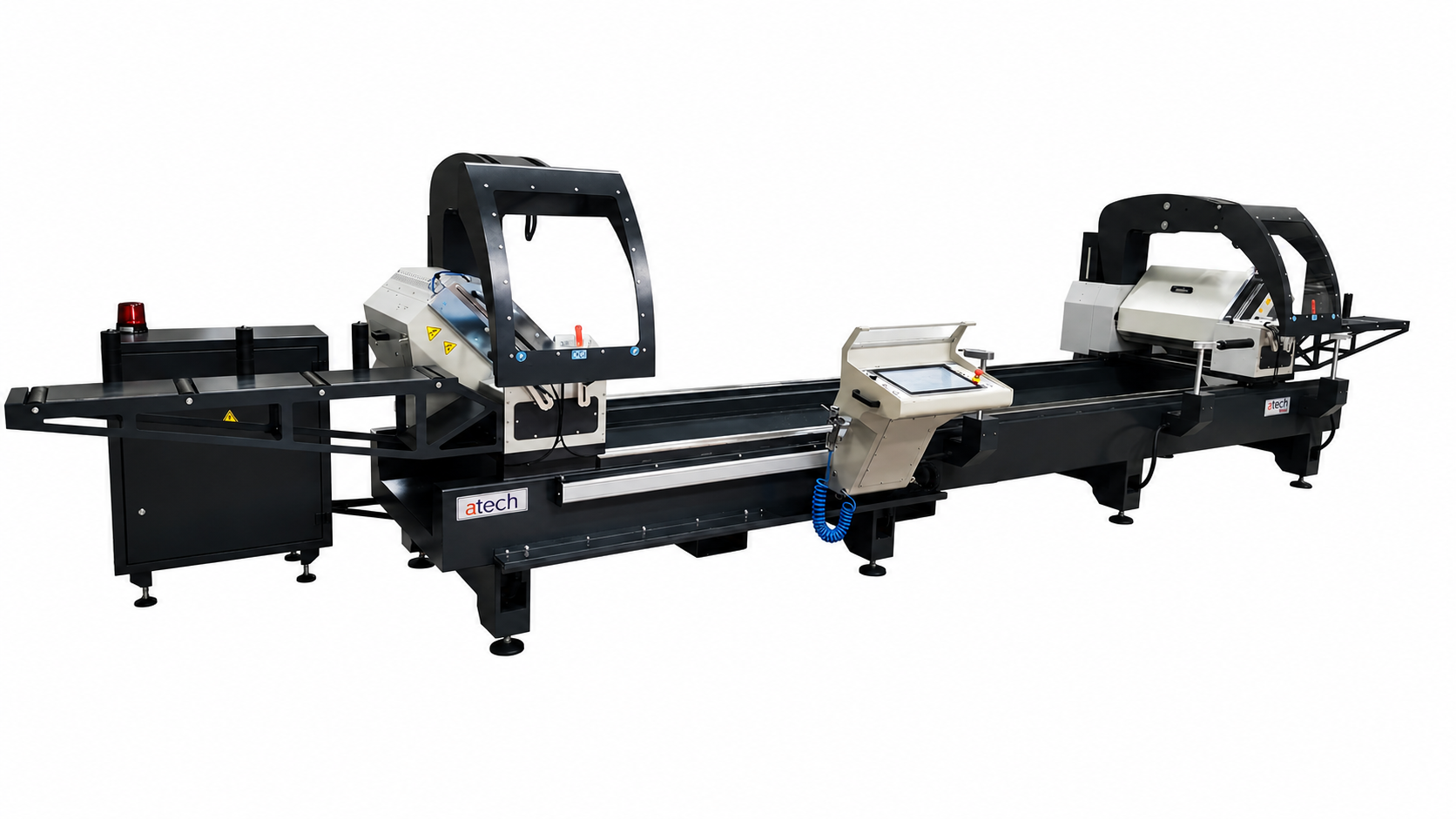

Full Automatic Double Head Miter Saw Ø 550 mm / 22″
- Cutting of aluminum, PVC extrusions in the desired length and at the required angle
- 15’’ Windows based Touchscreen industrial PC
- The saw head angles and motions can be precisely set via servo motor
- Angles between -22.5° and +45° can be adjusted automatically via servo motor
- The hydro-pneumatic cutting unit enables to adjust the cutting speed, precision and saw blade forward stroke
- Closed bottom surface frame and manifolds for chip removal
- Capable of cutting extrusions longer than the cutting length capacity
- Programmable for slicing, angle slicing, parts cutting list etc.
| Servo kW: | 3×0,75 kW |
| Cutting Motor: | 2×3,0 kW |
| Saw Dimension: | D= 550 mm d= 30-32 mm |
| Saw Revolution: | 2500 r.p.m |
| Bar/Air Cons.: | 6-8 Bar – 100 lt./min. |
| Packing Size: | WxLxH (cm) 595x170x200 cm |
| Machine Size: | WxLxH (cm) 713x195x192 cm |
| Machine Kg: | 1800 |
Cutting Length:
- 90° min.: 390 mm : 5050 mm
- 45° min.: 595 mm : 5050 mm
- 2 pcs. Ø550 mm saw blades

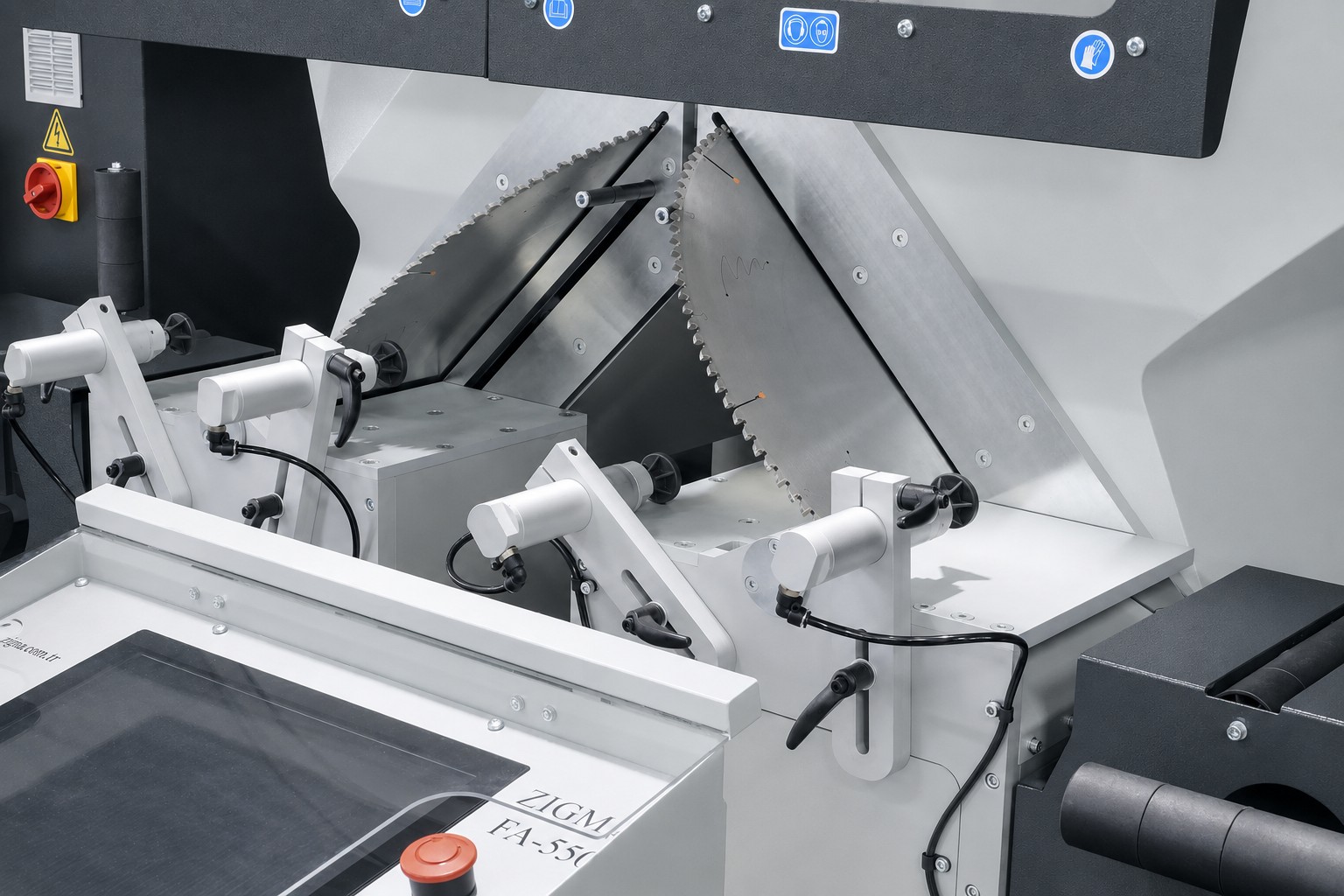

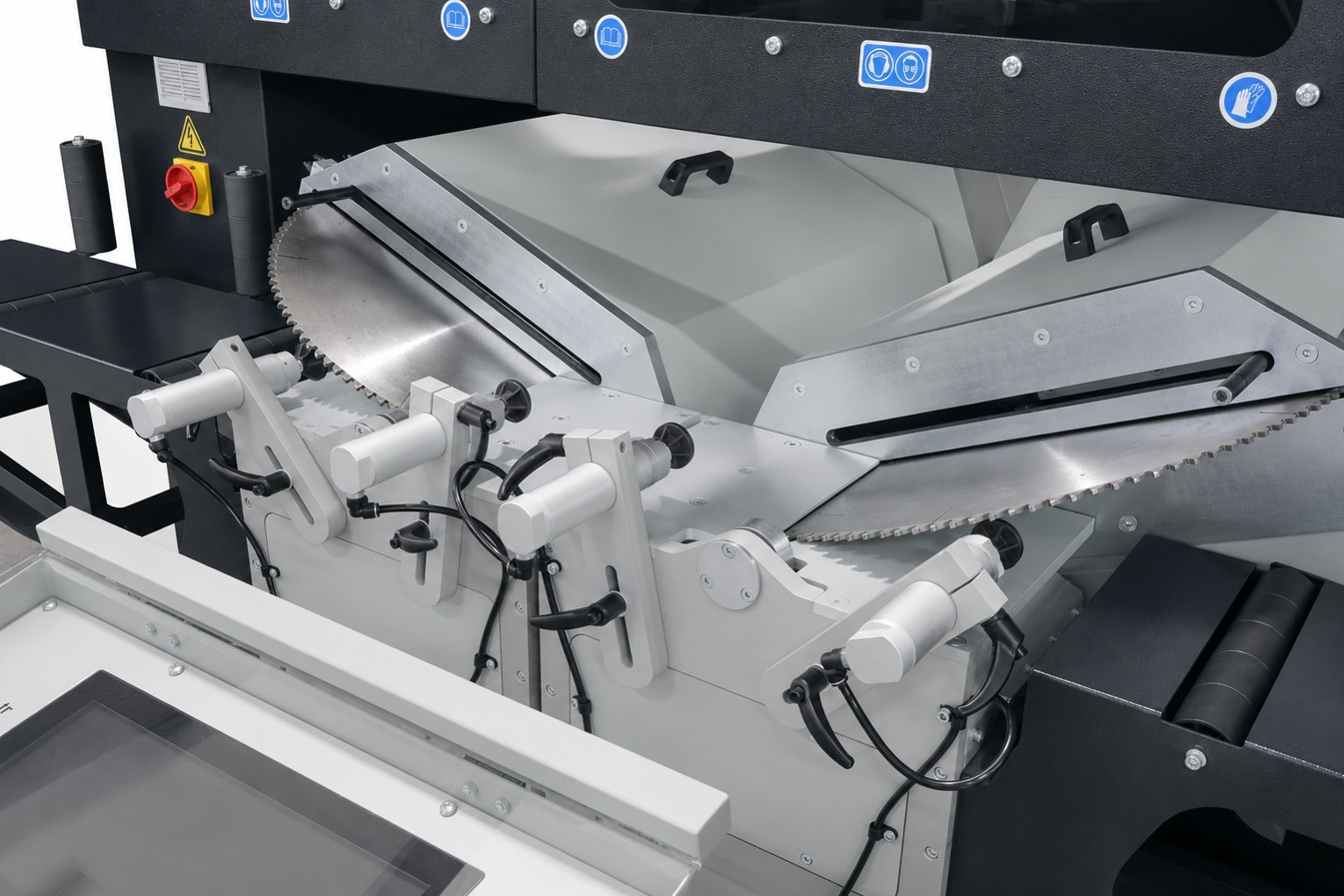

- 4 pcs. horizontal clamps
- 2 pcs. fixed conveyors
- 2 pcs. automatic extrusion support units
- Air blow gun
- Printer
- Conveyor on fixed saw head
- 2 pcs. Vertical clamps.
- Slicing equipment
- 4 kW Electric motor
