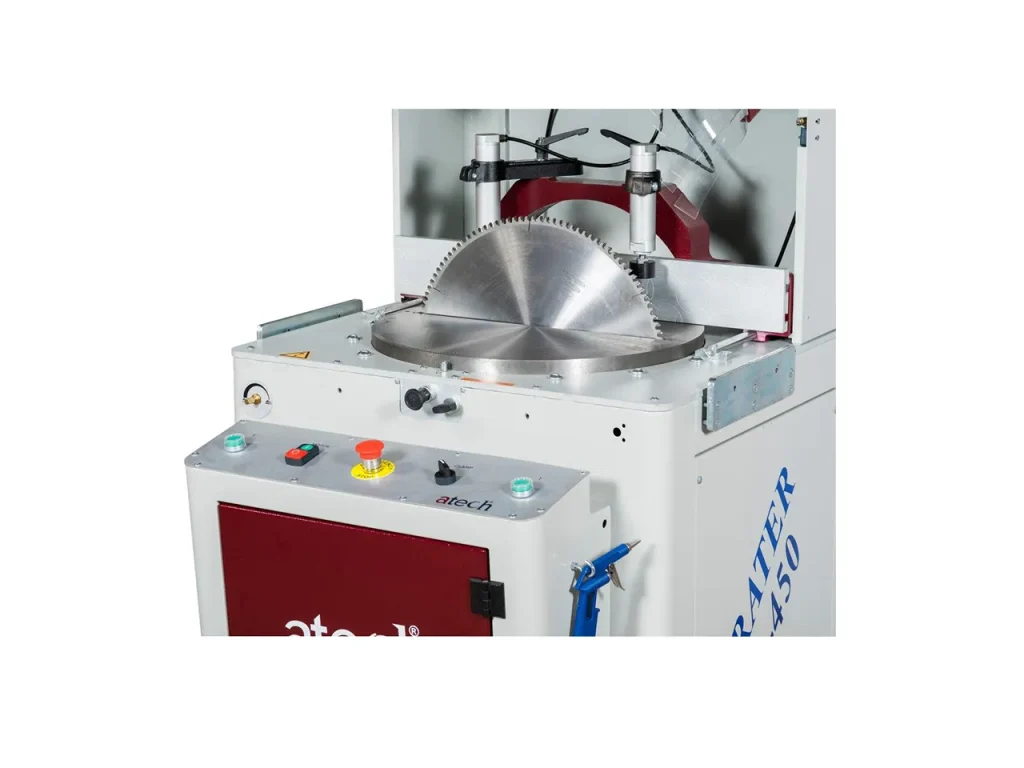

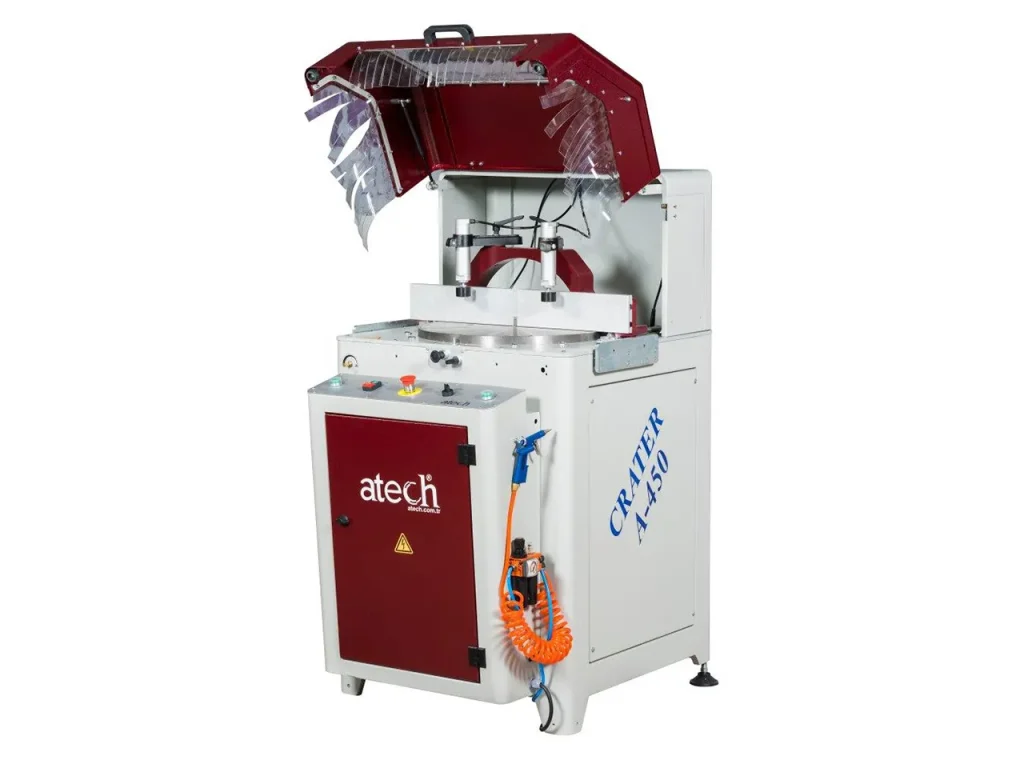

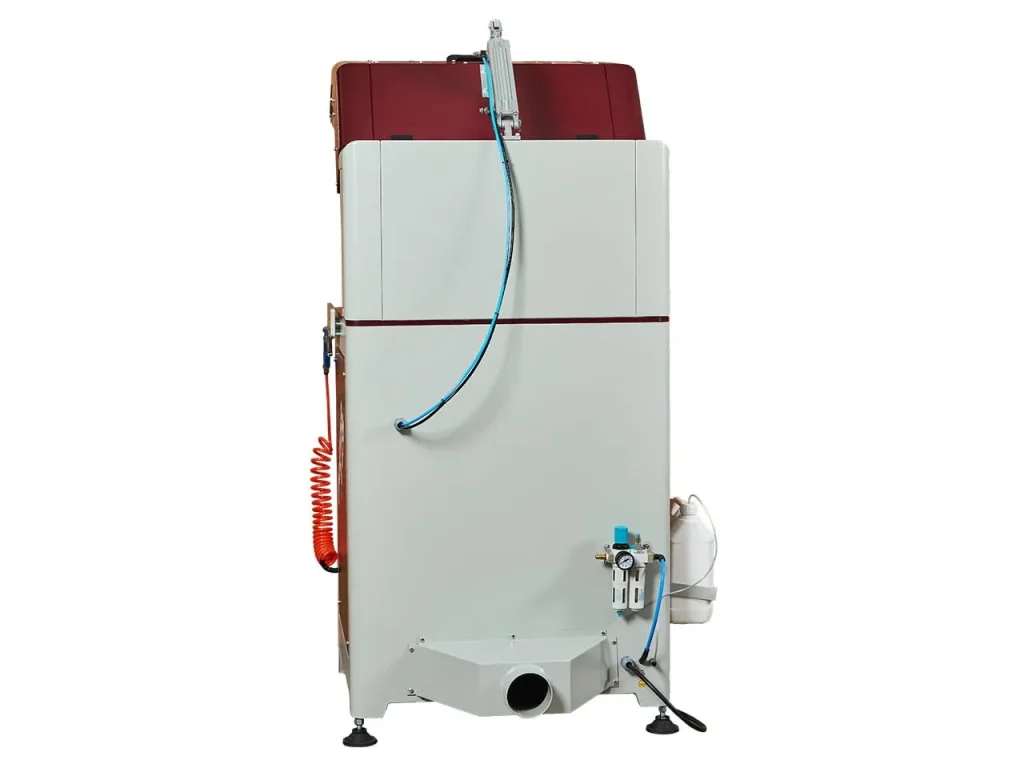

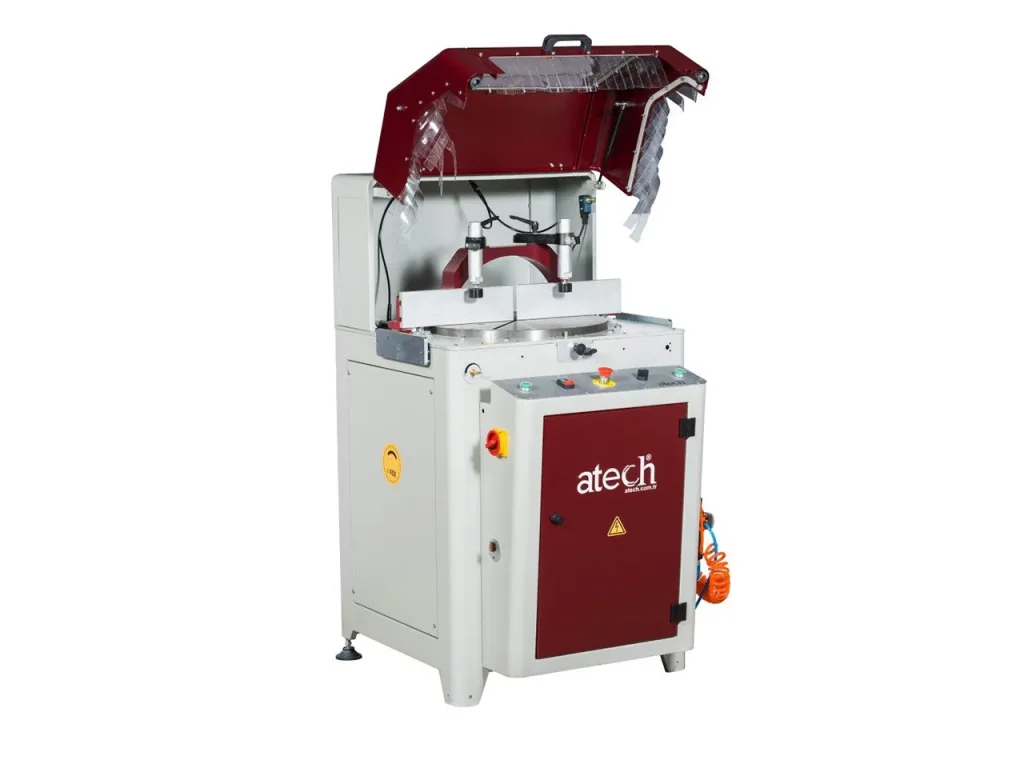

Automatic Upcut Miter Saw Ø450 mm
It is manufactured in compliance with CE standards to automatically cut large-sized aluminum and PVC profiles, either flat or mitered, using a Ø450 mm bottom-exit saw.
- Two-hands safety system

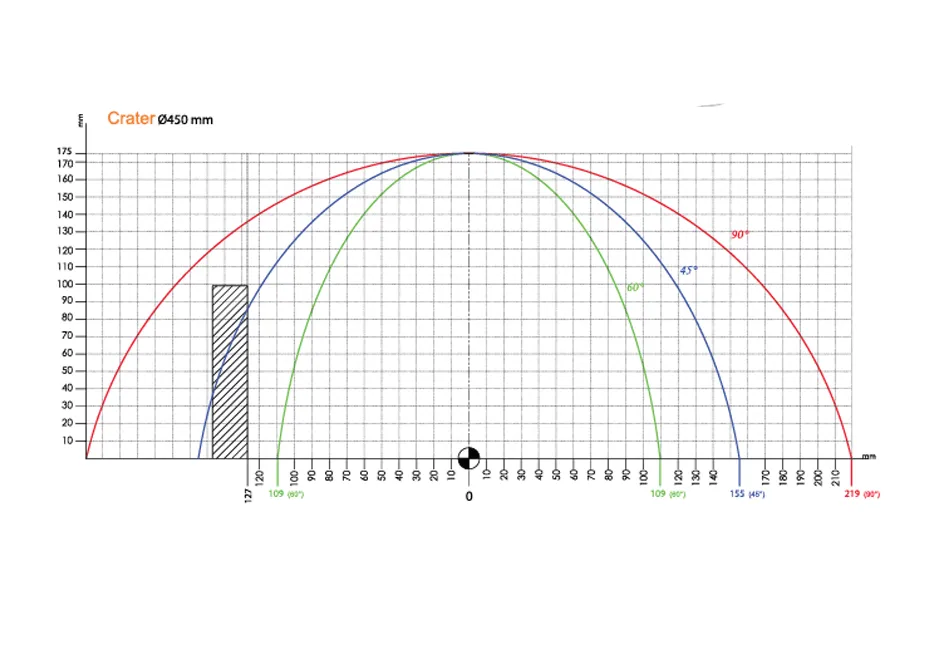

- Greater cutting range than other manufacturers
- 90° cut on the left
- Miter movement
- Cutting at intermediate degrees
- Saw blade rising speed is hydro-pneumatic adjustable
- Equipped double hand safety feature
- Cutting at standard angles and any intermediate angles
- Split type straight cut on left 90 angle
| Cutting Motor: | 2.2 kW, 3 HP 400 V-230 V, 50/60 Hz |
| Saw Dimension: | D=450 mm d=30-32 mm |
| Saw Revolution: | 3000 |
| Bar / Air Cons.: | 6-8 Bar, 20lt/min |
| Packing Size: | 90 x 106 x 154 cm |
| Machine Size: | 80 x 96 x 138 cm |
| Machine Kg: | 244 |
- 1 pc. 450 mm saw blade
- 2 pcs. vertical pneumatic clamps
- Air blow gun
- Milling saw, tool holder and collets
- Conveyor
- Spray mist lubrication system
- Horizontal clamps
- Chip collector manifold
- Foot pedal control system
- Automatic Up Guard
- Monofaze Motor
