Aluminium Glazing Bead Saw (with Laser Meter+Bluetooth)
It is used for high precision and fast cutting of glazing beads used in aluminum windows, without wastage and in one go.
Thanks to Bluetooth technology, the measurements taken are transmitted remotely to the Servo and PC controlled conveyor. In this way, the operator is prevented from making mistakes and can send the bar to the desired cutting size with a single click.
Additionally, thanks to its programmable feature, a cutting list can be created. Data transfer can be provided via Wifi and USB. Thanks to the remote access feature, remote technical support can be provided.
- Cutting prescription can be made
- Individual cutting with laser meter
- Creating a list with a laser meter
- Data transfer via Wifi and USB
- Two-hands safety system
- Miter movement
- Cutting at intermediate degrees
- Saw blade rising speed is hydro-pneumatic adjustable
- Equipped double hand safety feature
- Cutting at standard angles and any intermediate angles
- Split type straight cut on left 90 angle
- Technical service via remote connection
| Servo kW: | 1×0,75 kW |
| Cutting Motor: | 2.2 kW, 3 HP, 400 V – 230 V – 50 / 60 Hz |

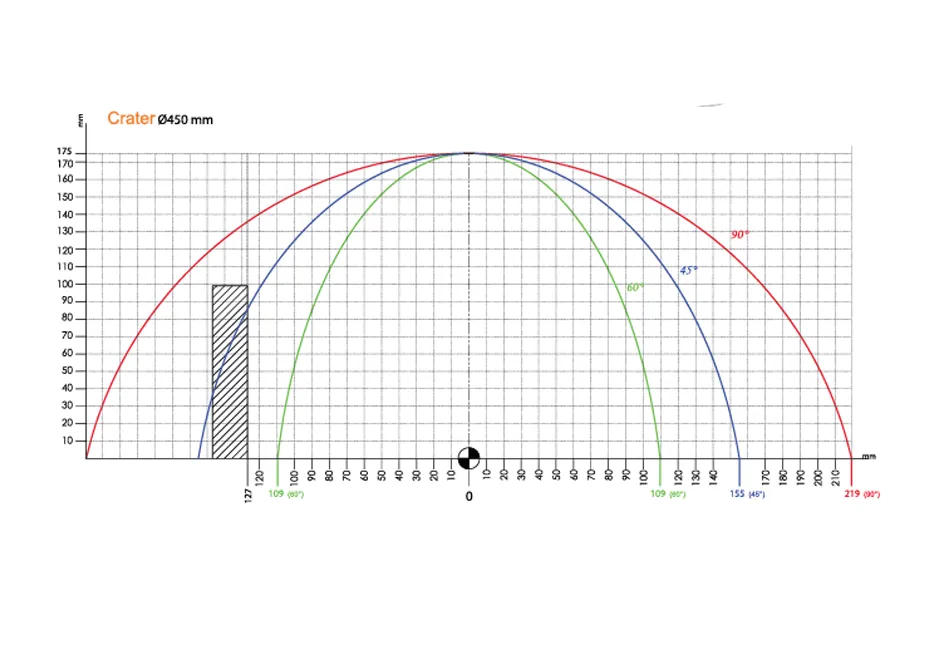

| Saw Dimension: | D= 450 mm d= 30-32 mm |
| Saw Revolution: | 3000 r.p.m |
| Bar/Air Cons.: | 6-8 Bar – 20 lt/min |
| Packing Size: | WxLxH (cm) 90x106x154 cm 316x53x59 cm |
| Machine Size: | WxLxH (cm) 80x96x138 cm 300x66x153 cm |
| Machine Kg: | 244 115 |
- Bluetooth device
- 1 pc. 450 mm saw blade
- 2 pcs. vertical clamps
- Air blow gun
- Spray mist lubrication system
- Conveyor
- 1pc., 3 meter KN-M3 conveyor for the left side
- Drive conveyor is 3 meter
- Horizontal clamps
- Chip collector manifold
- Foot pedal control system
- Automatic Up Guard
- Monofaze Motor
- Drive conveyor 6 meter
