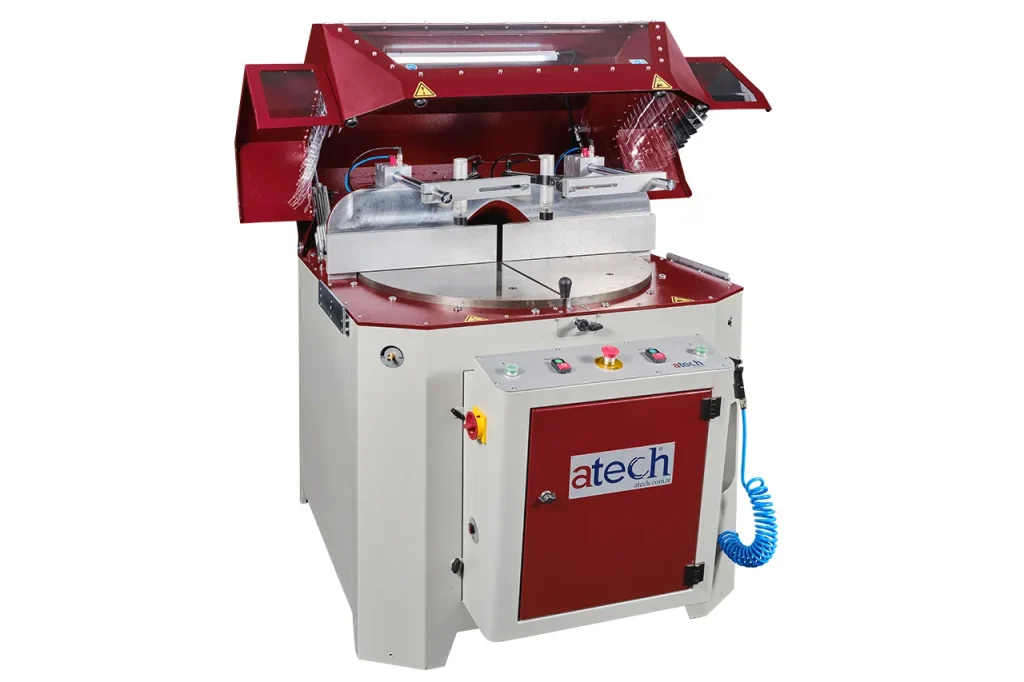

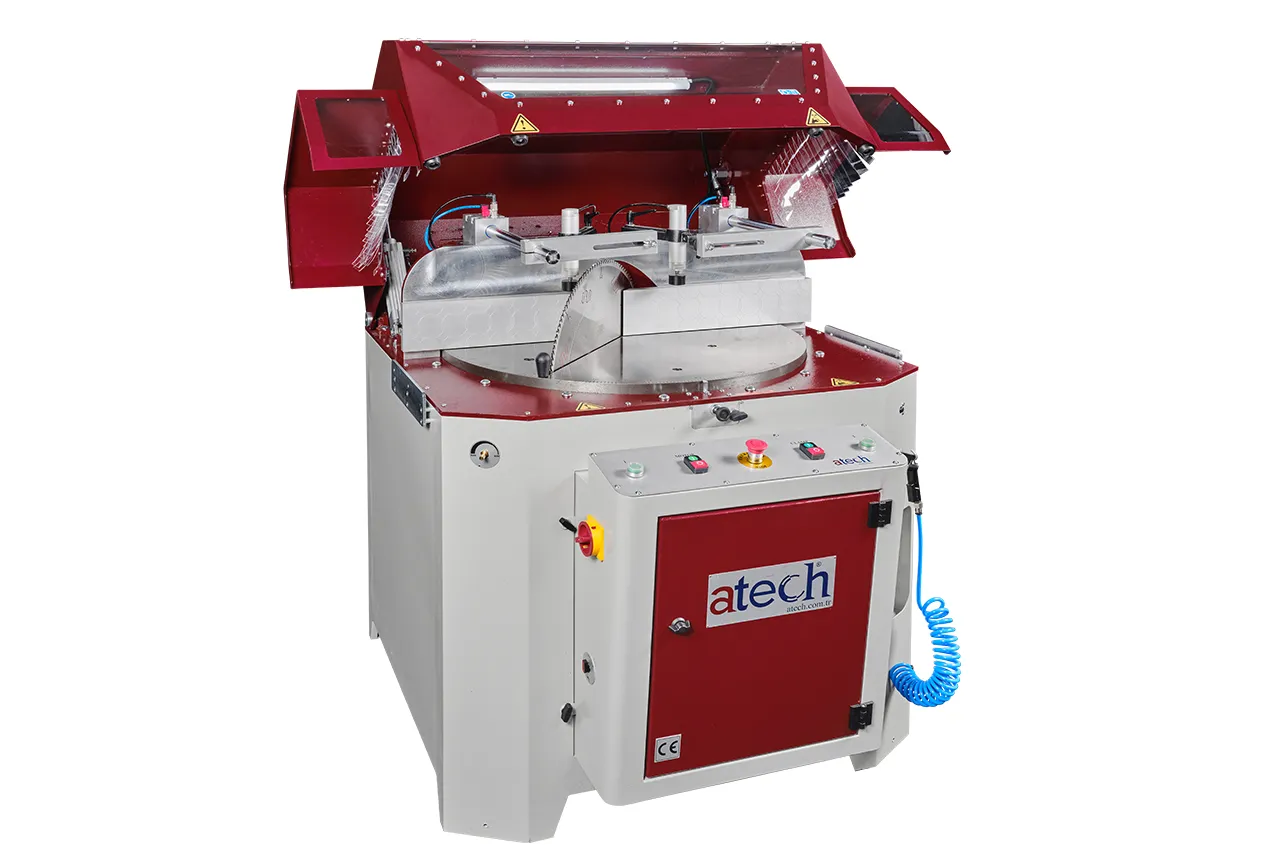

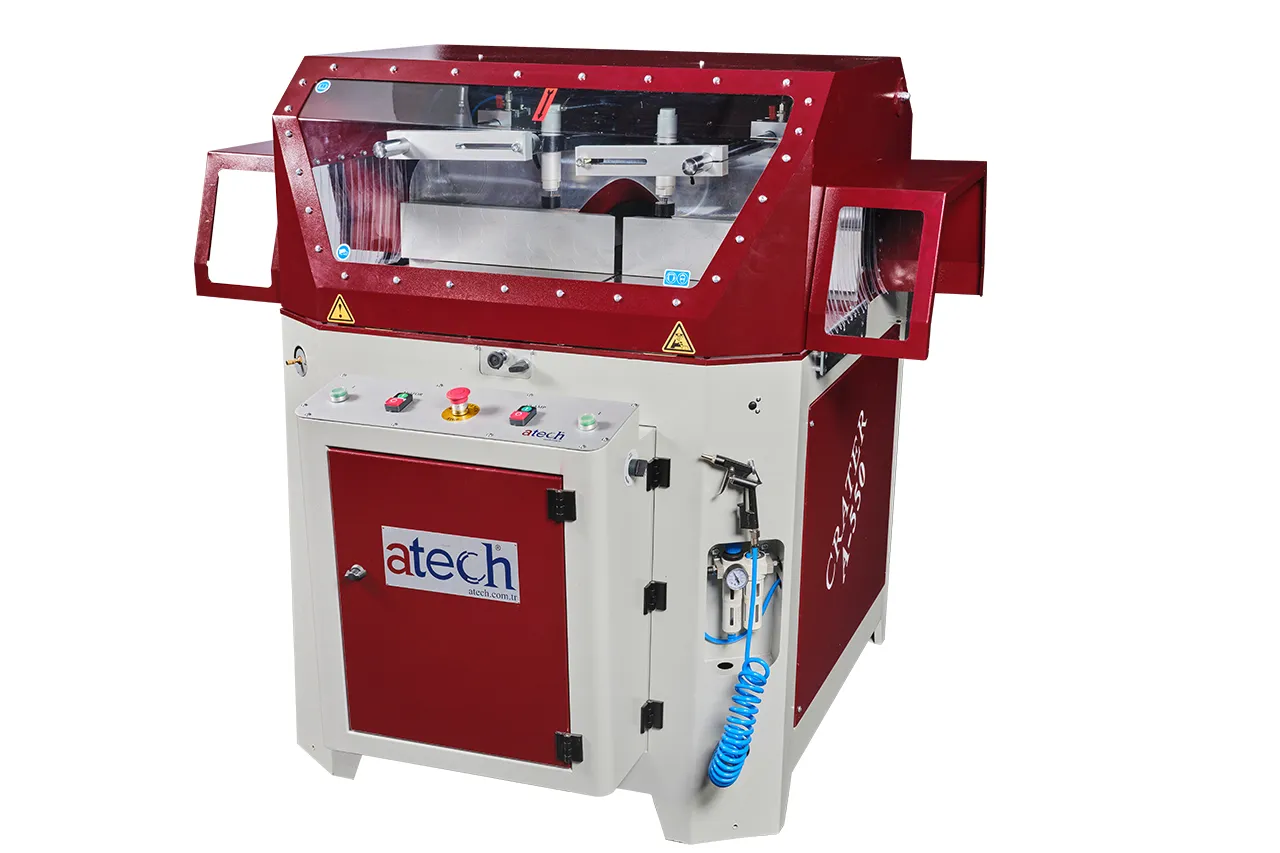

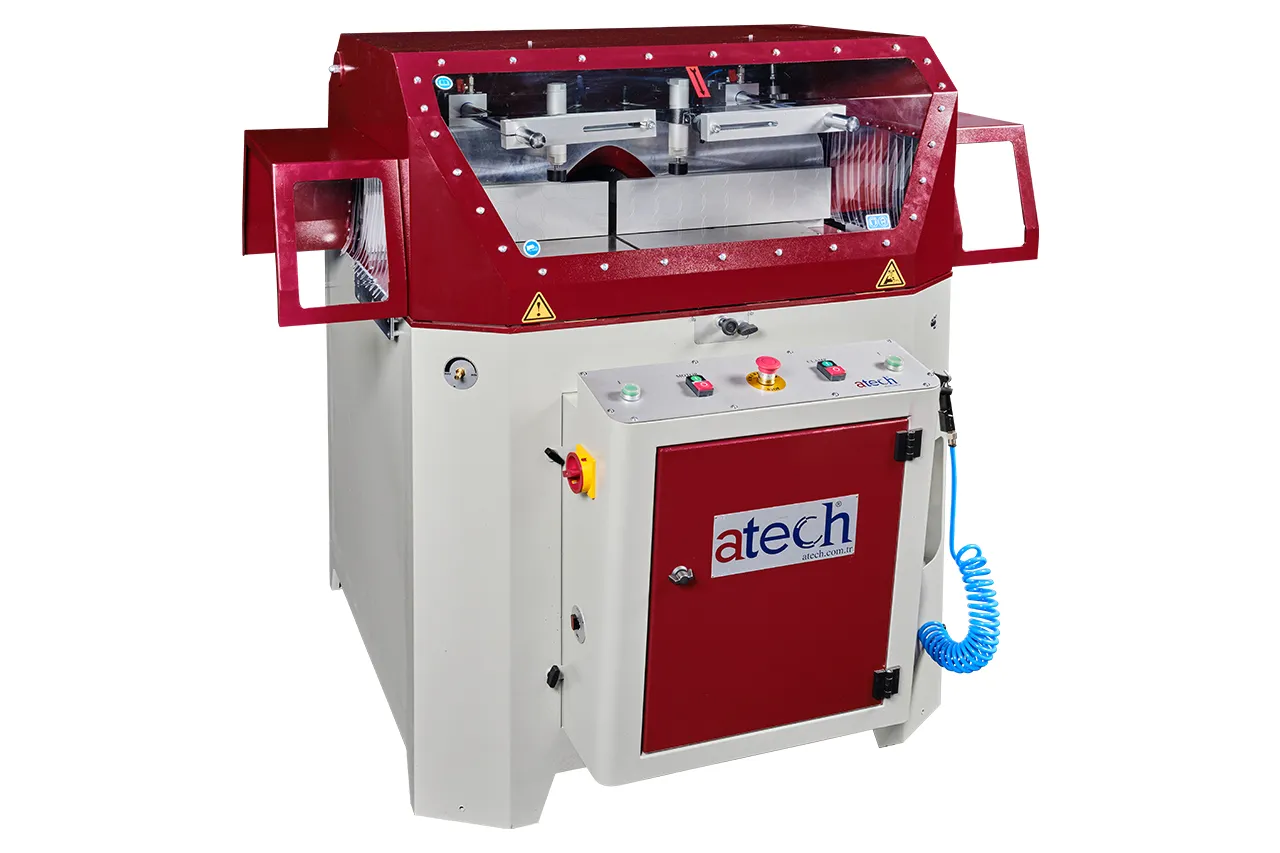

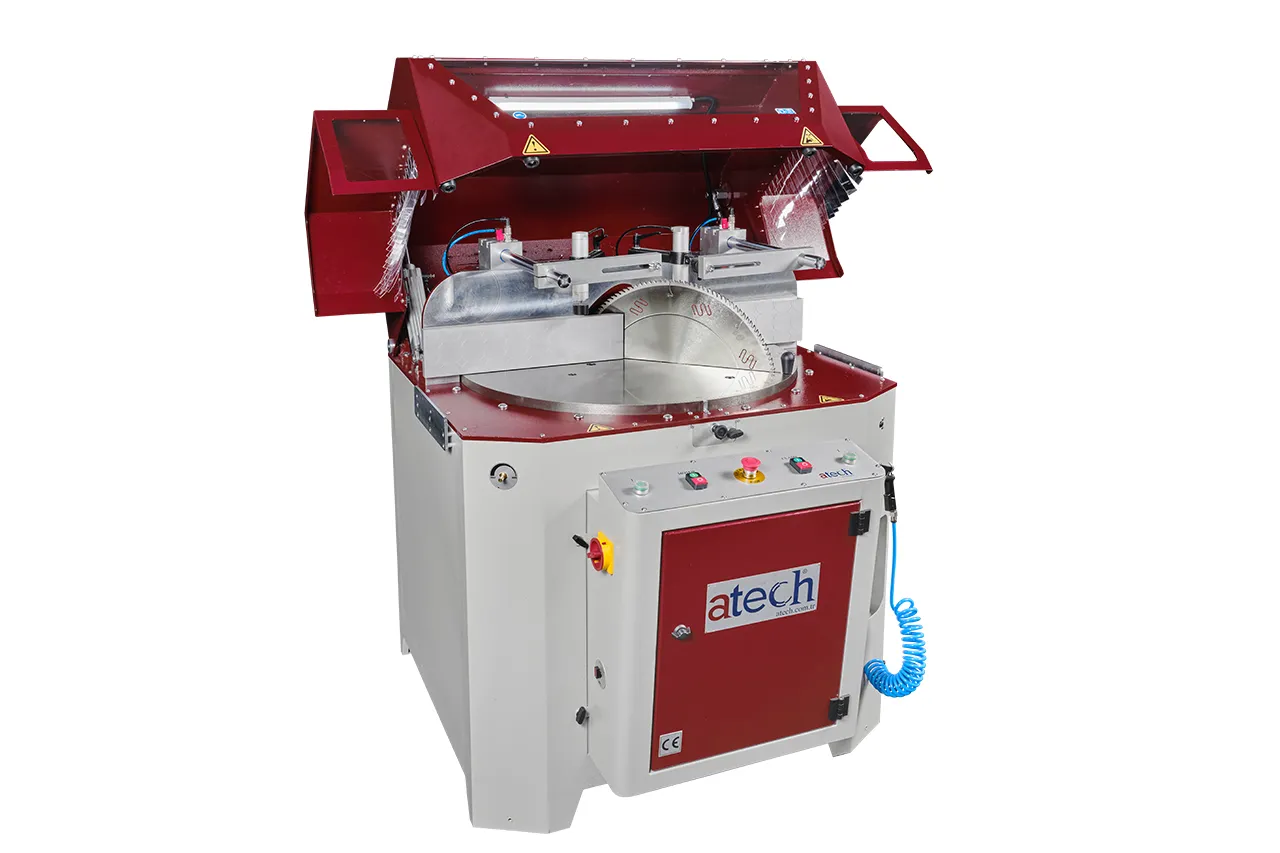

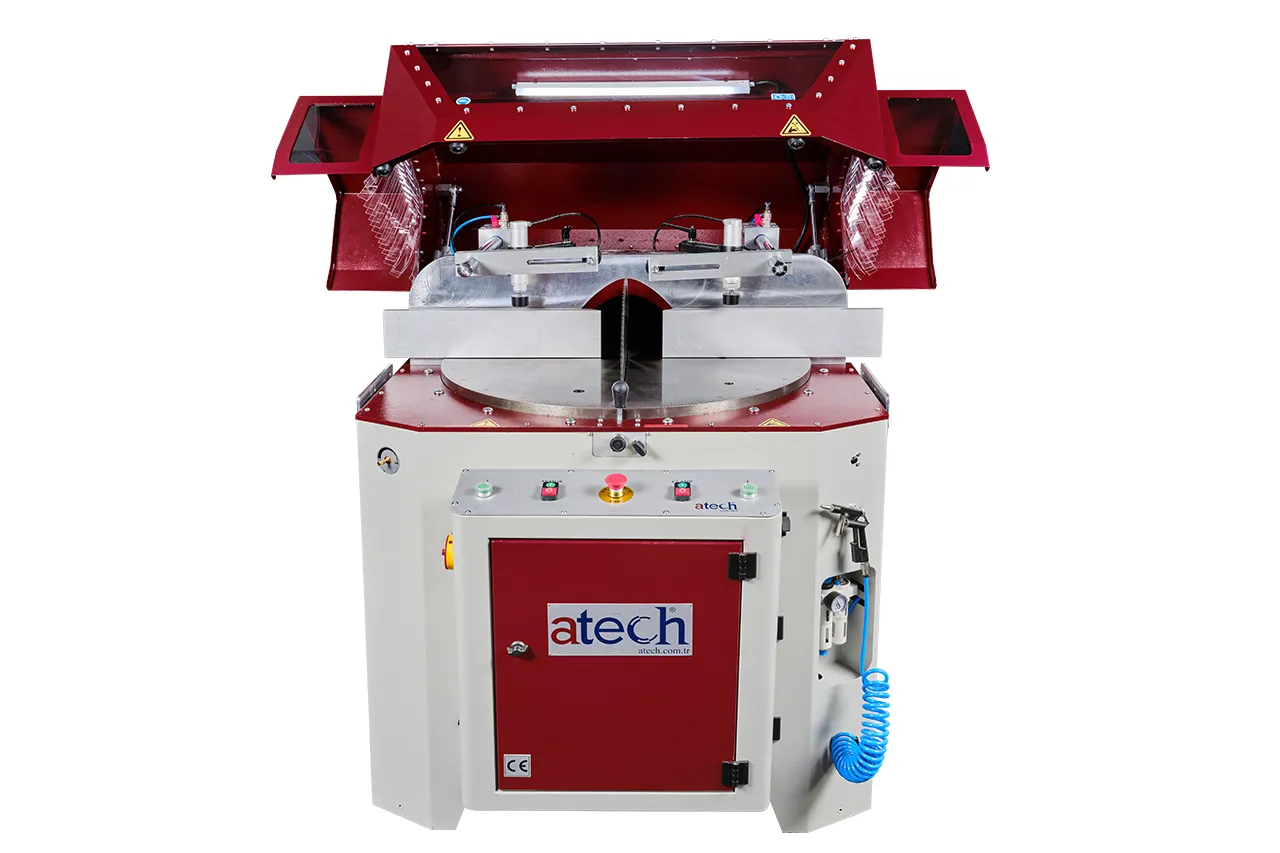

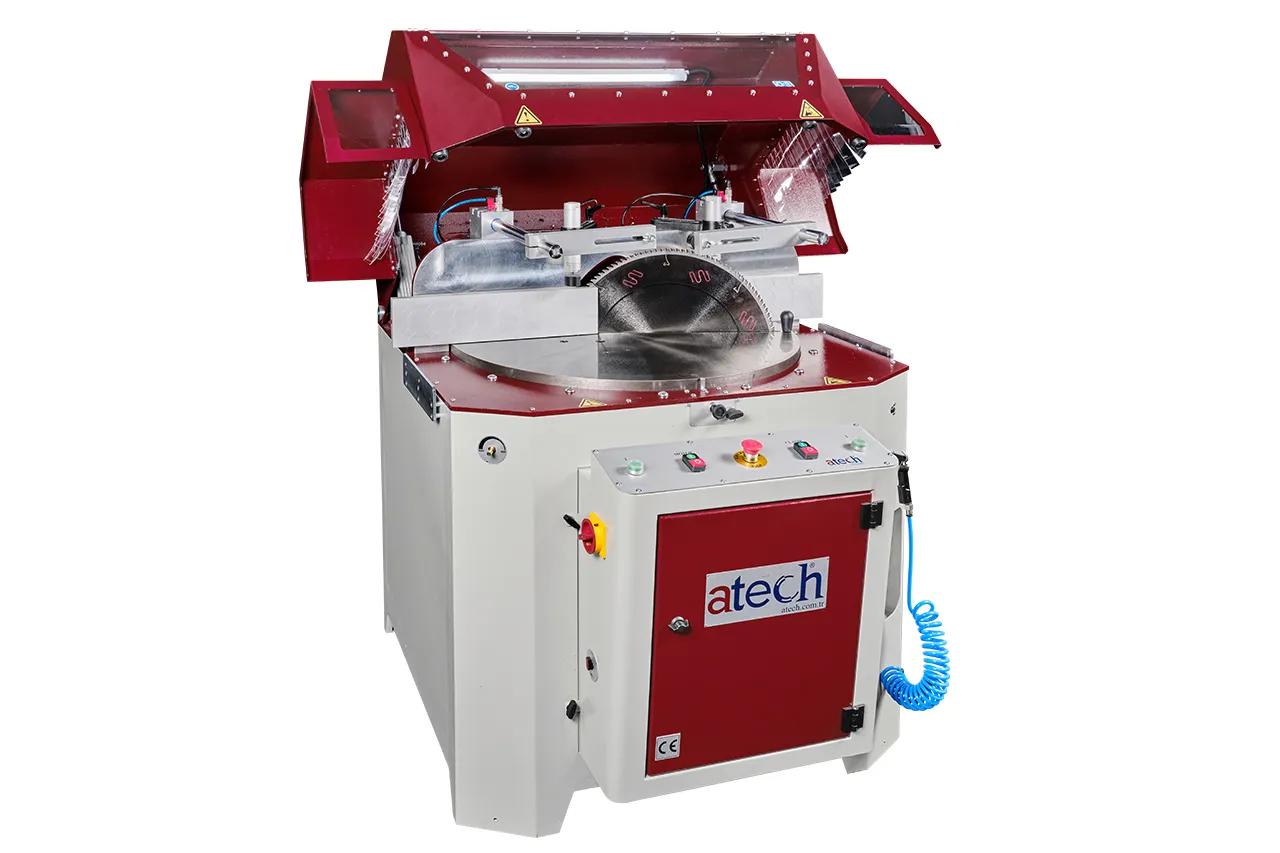

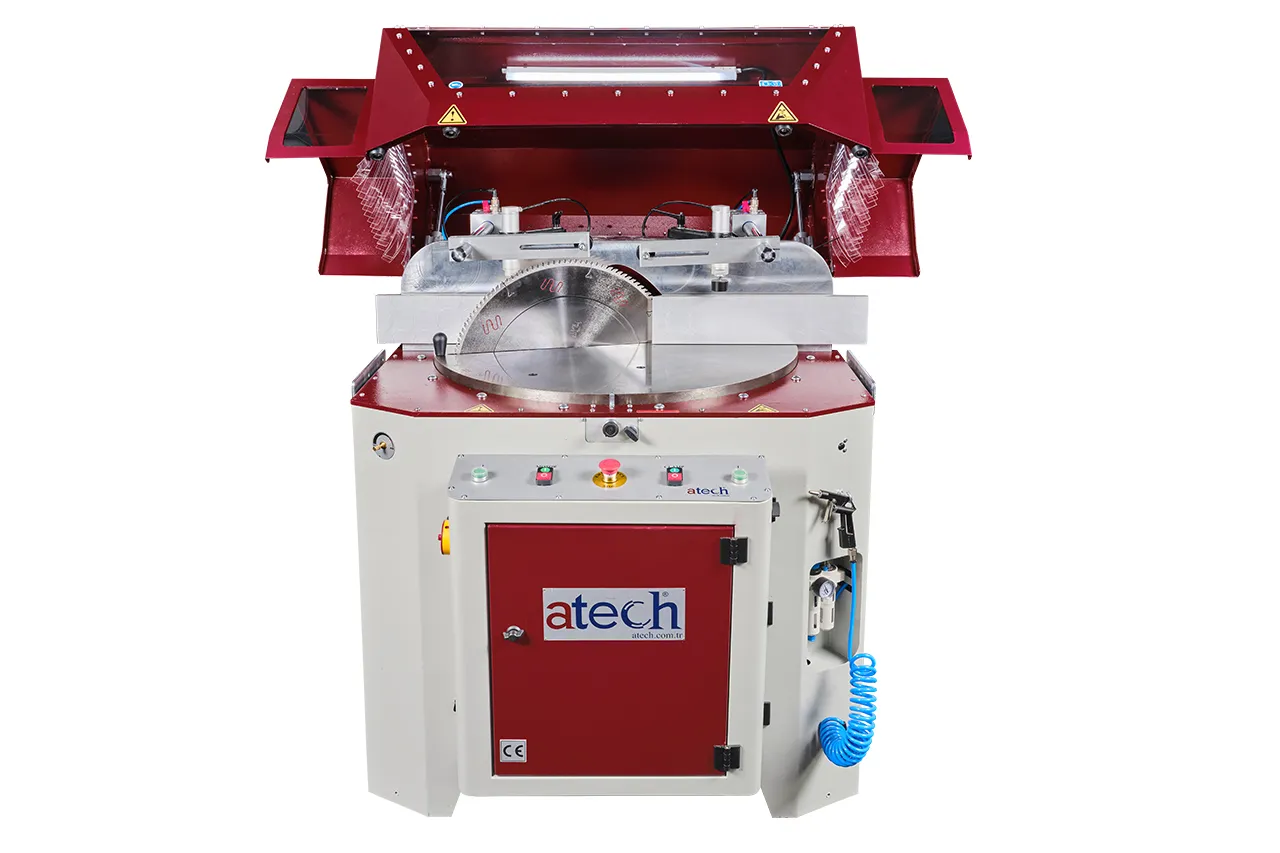

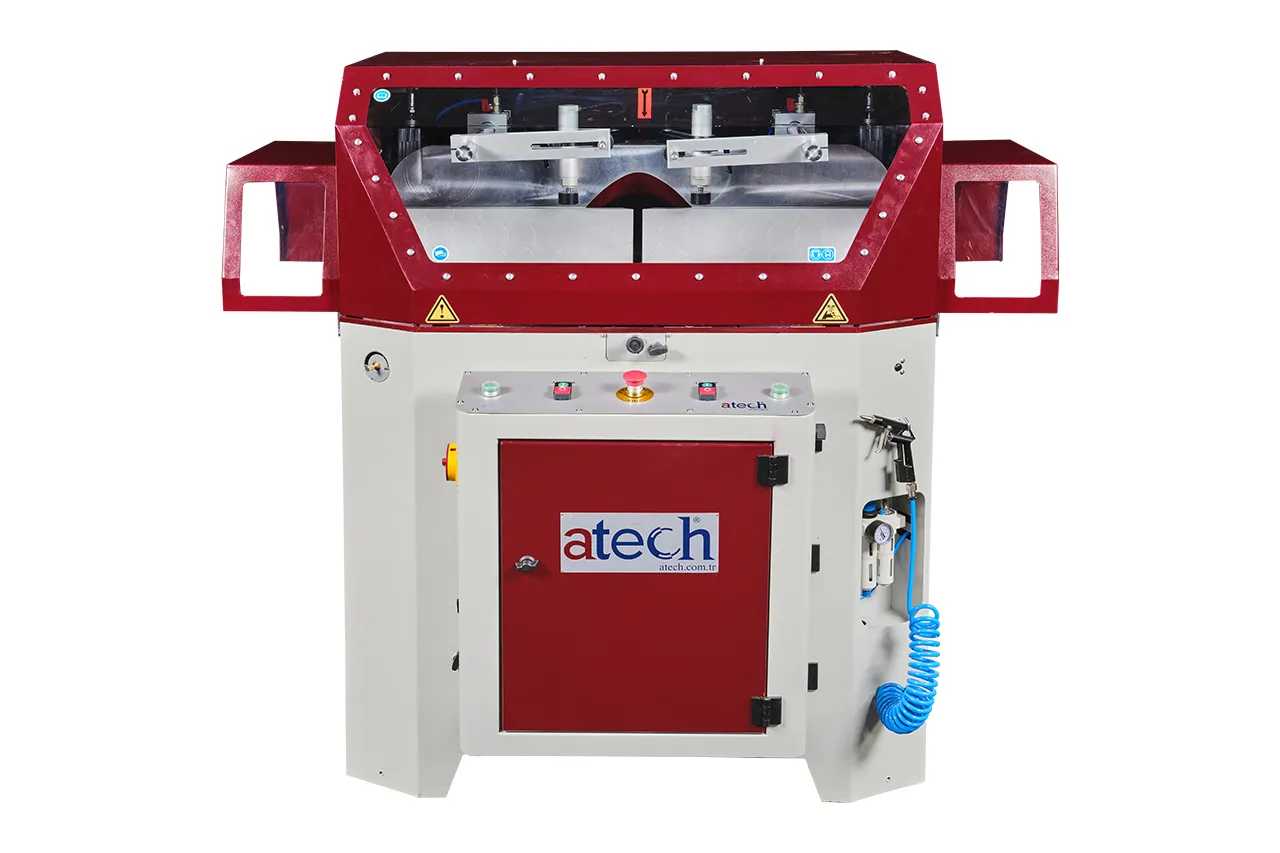

Automatic Upcut Miter Saw Ø 550 mm
- Strong machine body

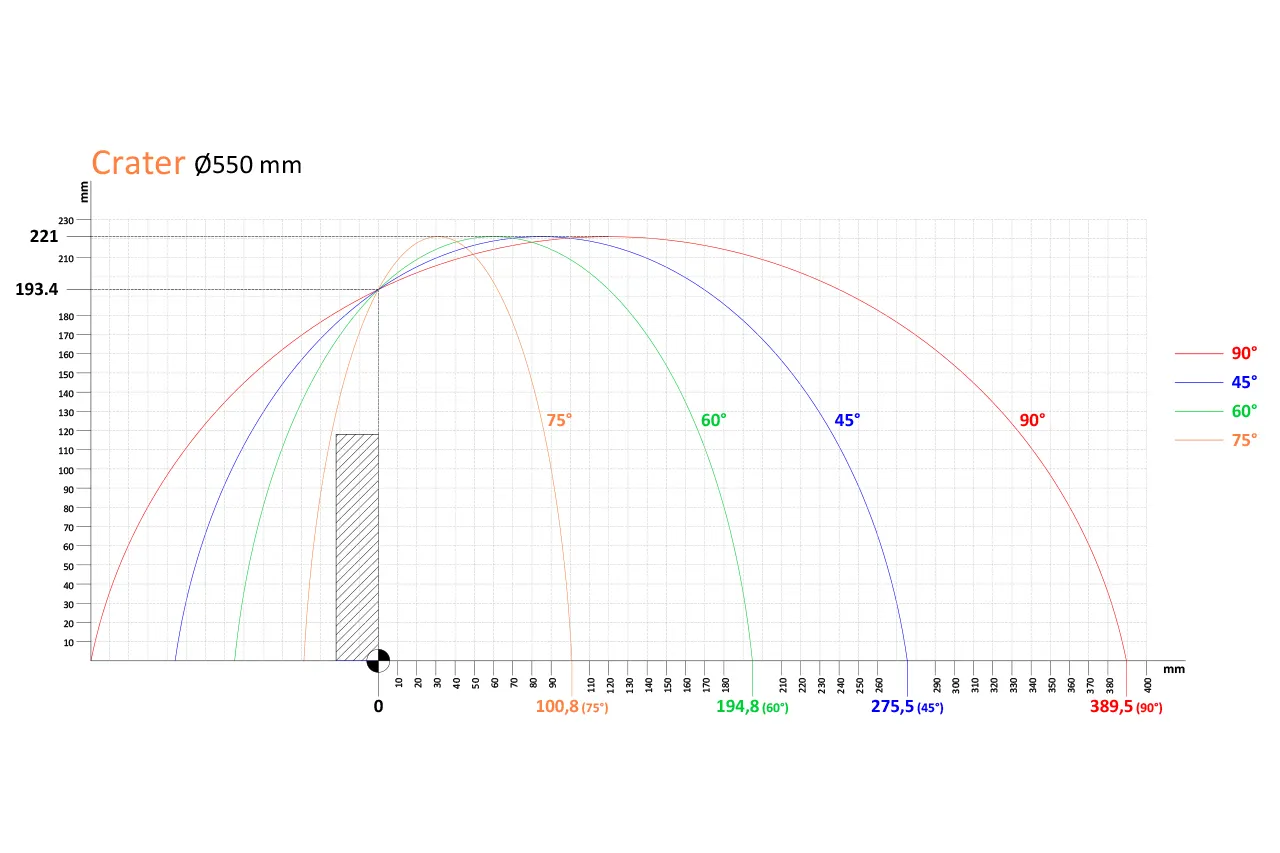

- Greater cutting range than other manufacturers
- Twin-hands safety system
- Cutting at standard angles and any intermediate angles
- More powerful chip vacuum system with one manifold
- Saw blade rising speed is hydro-pneumatically adjustable
- Interior LED lighting
- Miter lock angles at 75°,60°,45°,30°,22.5°,15°,0° both left and right
| Kesme Motoru: | 4.0 kW, 5.5 HP 400 V, 50/60 Hz |
| Saw Dimension: | D=550 mm d=30-32 mm |
| Saw Revolution: | 2500 |
| Bar / Air Cons.: | 6-8 Bar, 30lt./min. |
| Packing Size: | 142 x 122 x 155 cm |
| Machine Size: | 150 x 130 x 157 cm |
| Machine Kg: | 480 |
- 1 pc. 550 mm saw blade
- 2 pcs. vertical clamps
- Air blow gun
- 1 pc. Horizontal clamp
- Spray mist lubrication system
- Automatic opening for upcover
- + 1 pc. Horizontal clamp

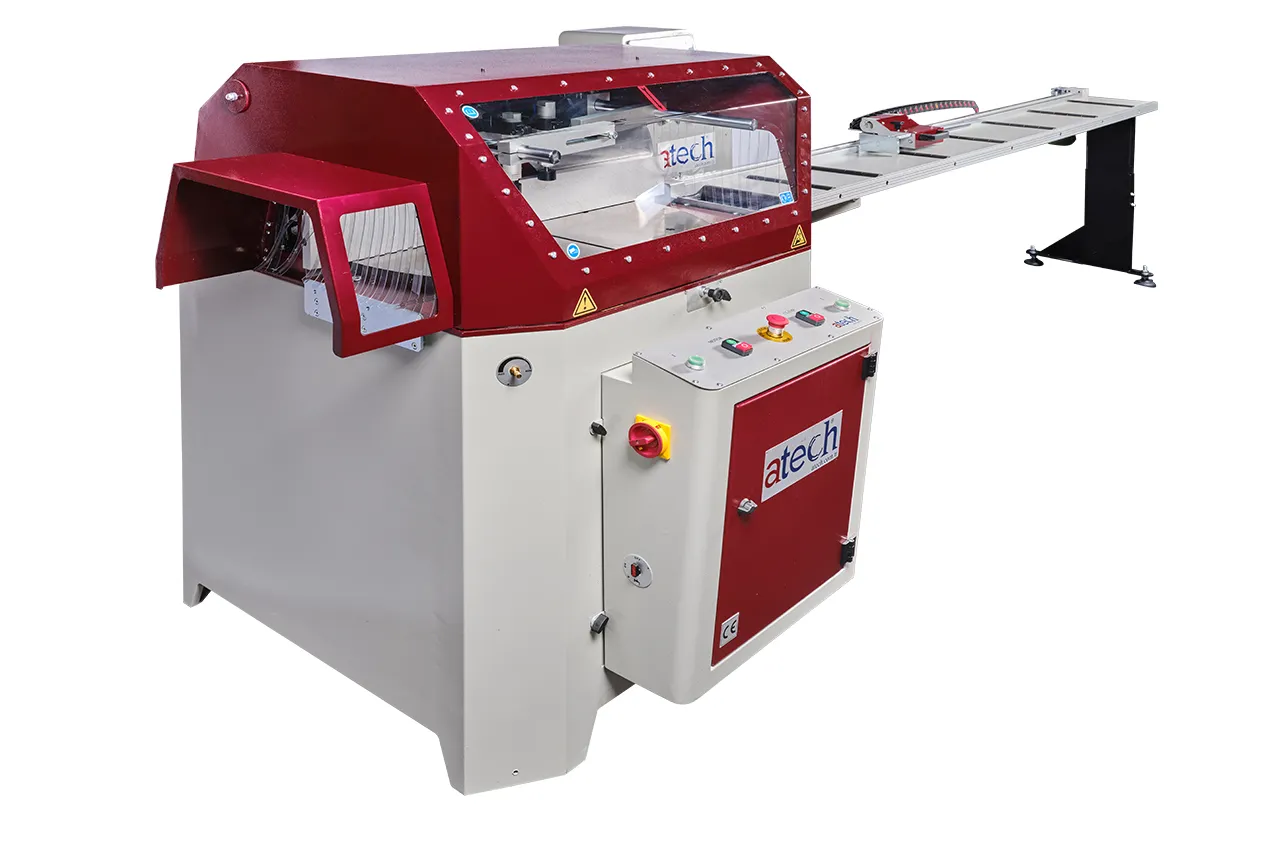

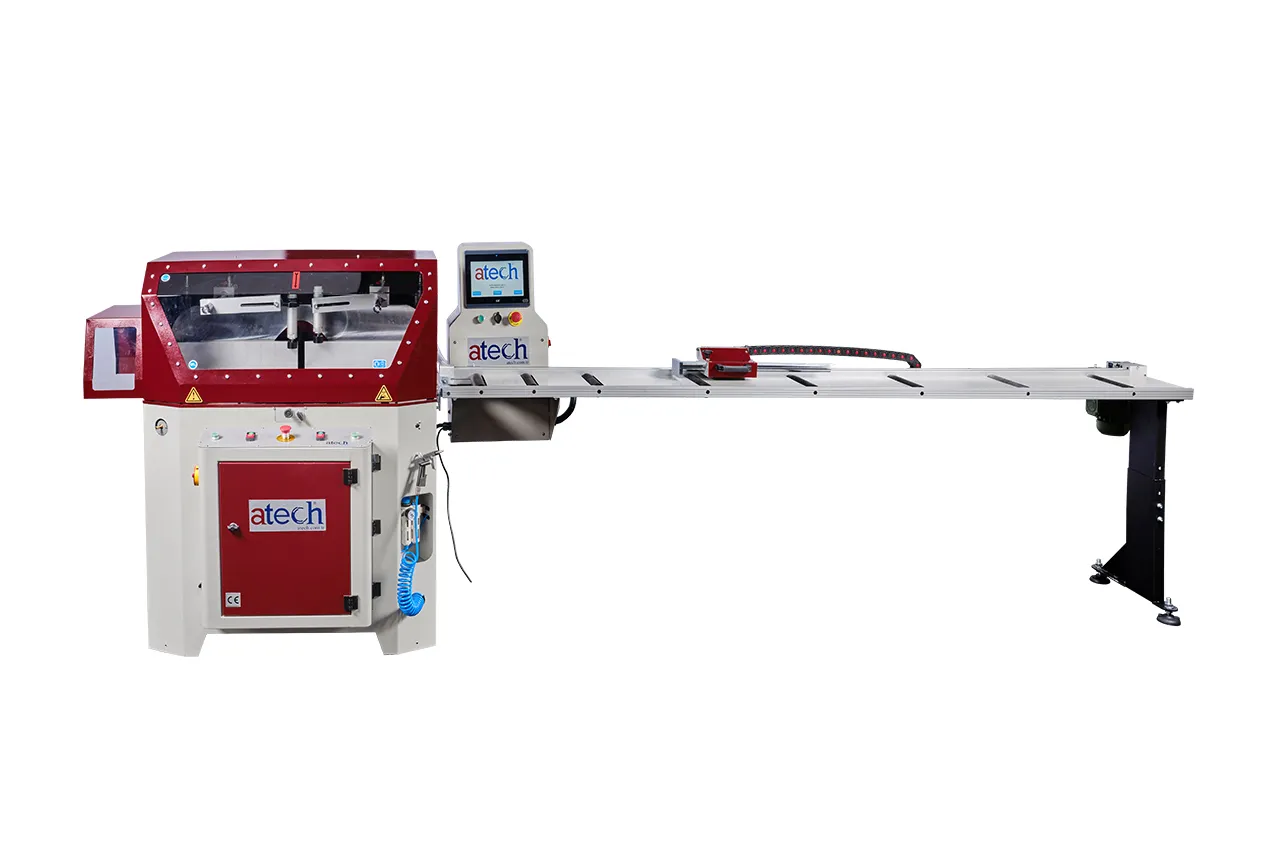

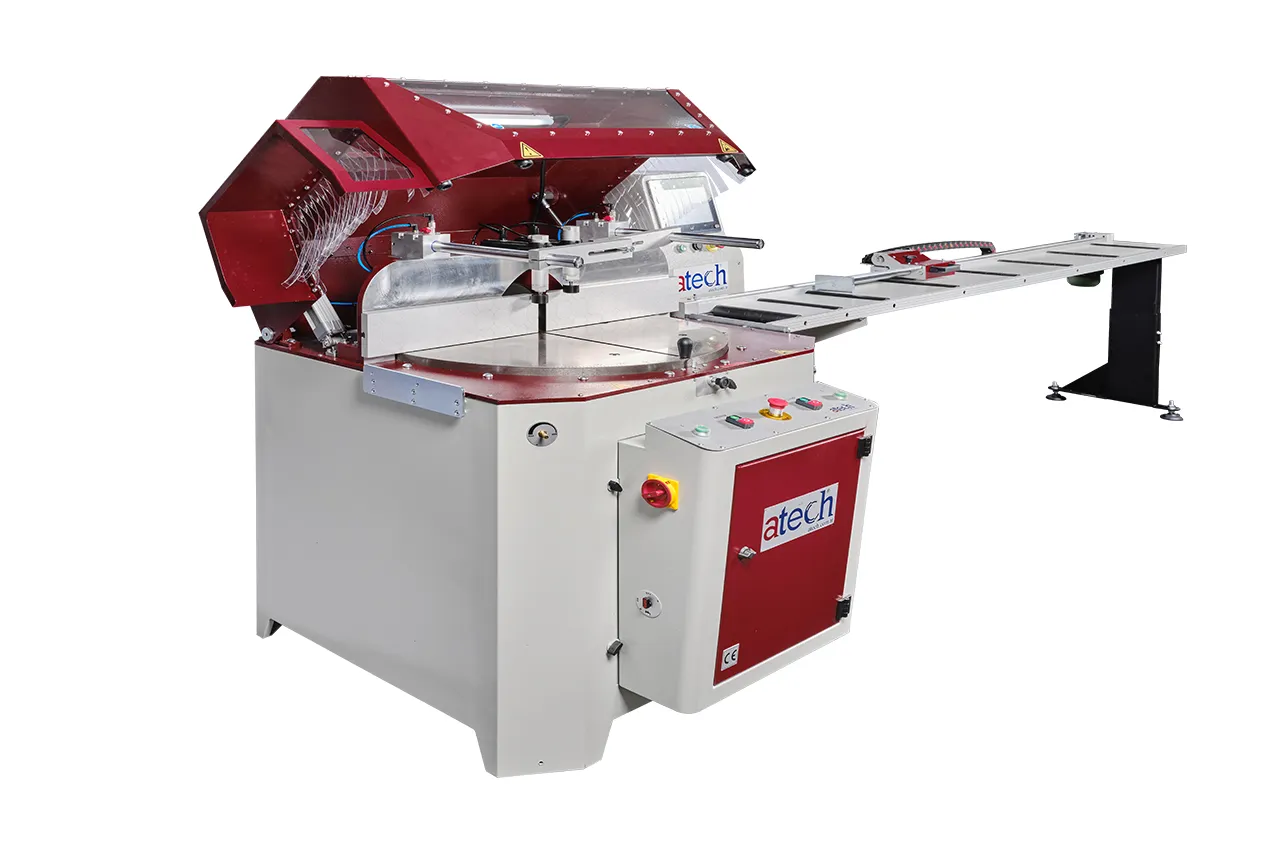

- Conveyor

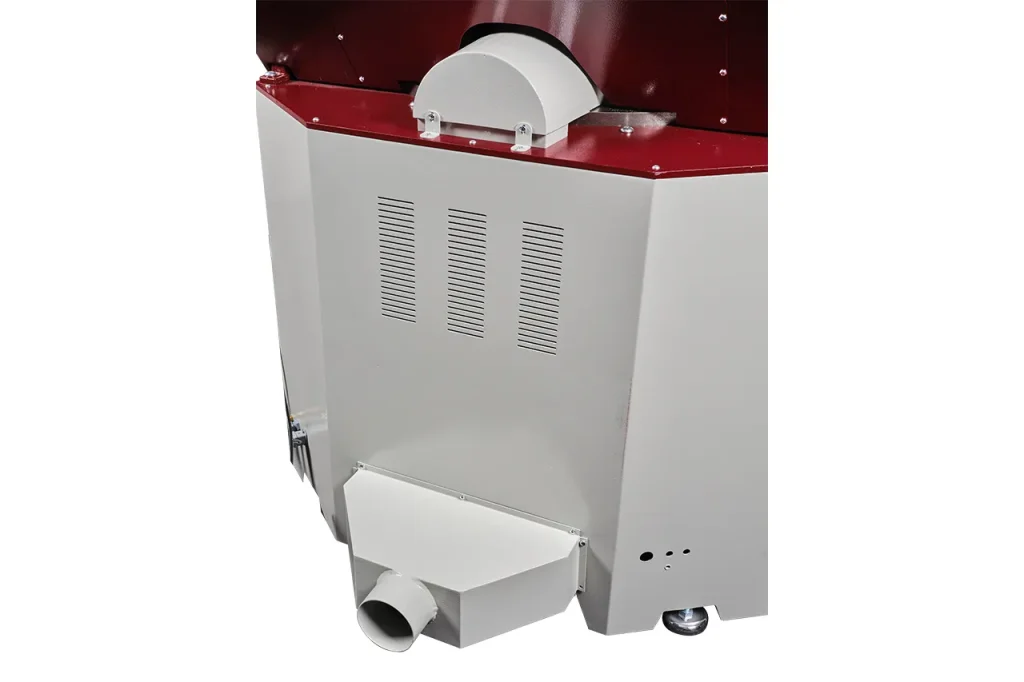

- Chip collector manifold
