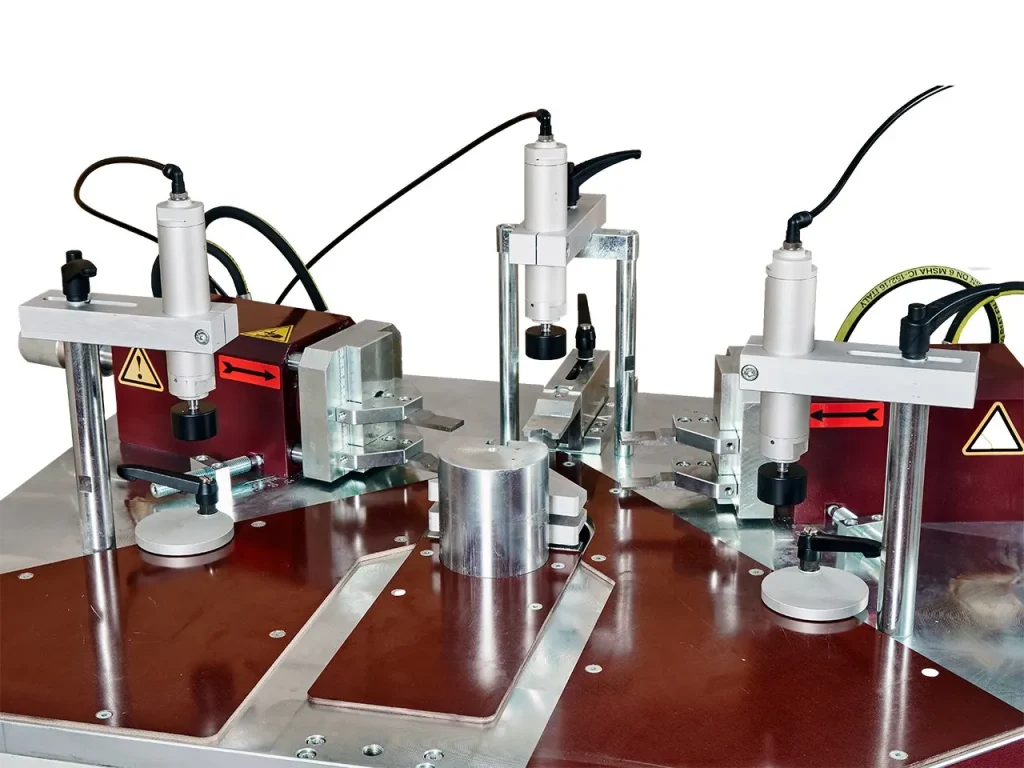

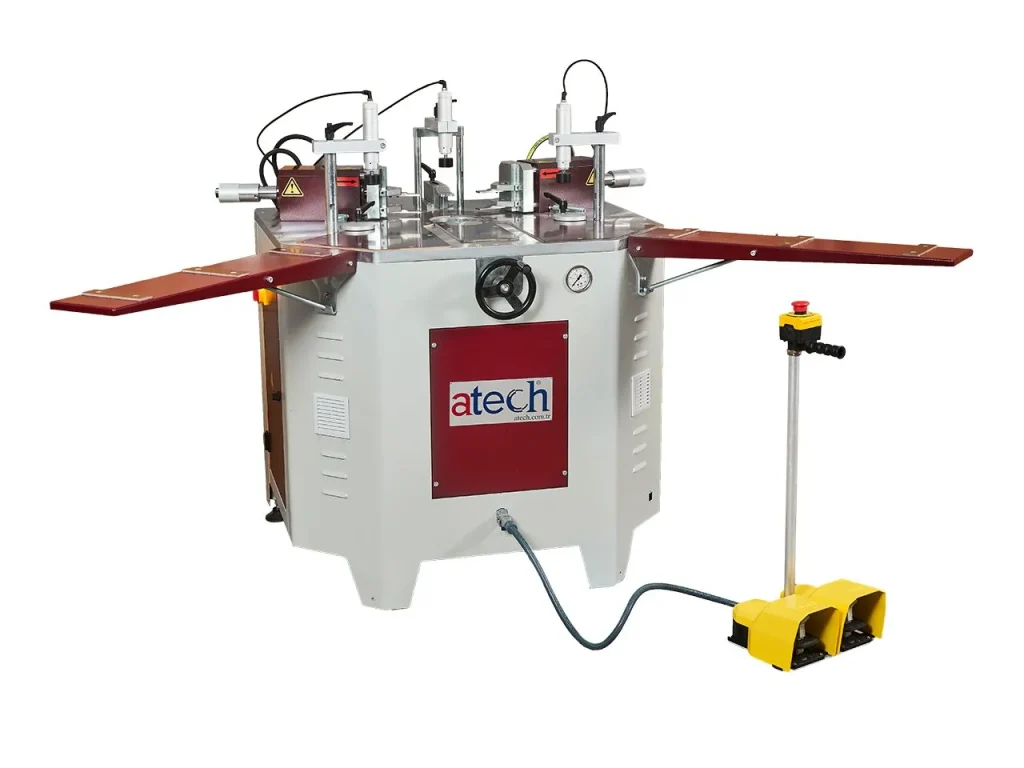

Hydraulic Corner Crimping Machine For Aluminium Profiles
- Corner joining of aluminium profiles at 90°

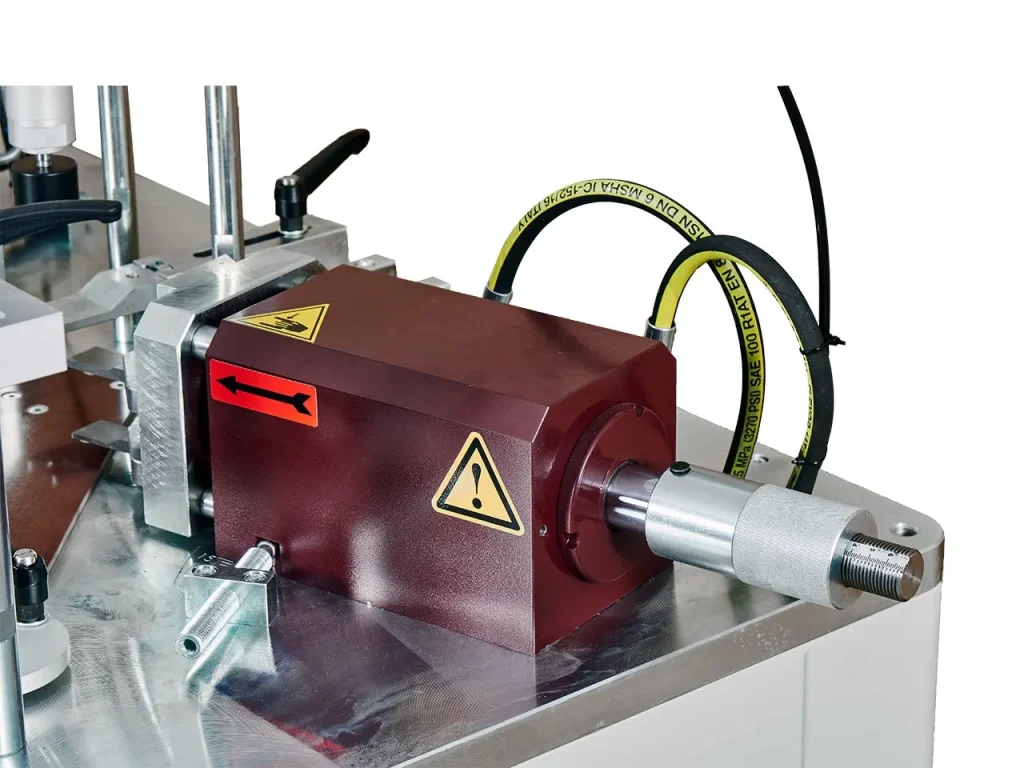

- Clamps operate pneumatically. The crimping knives are hydraulic

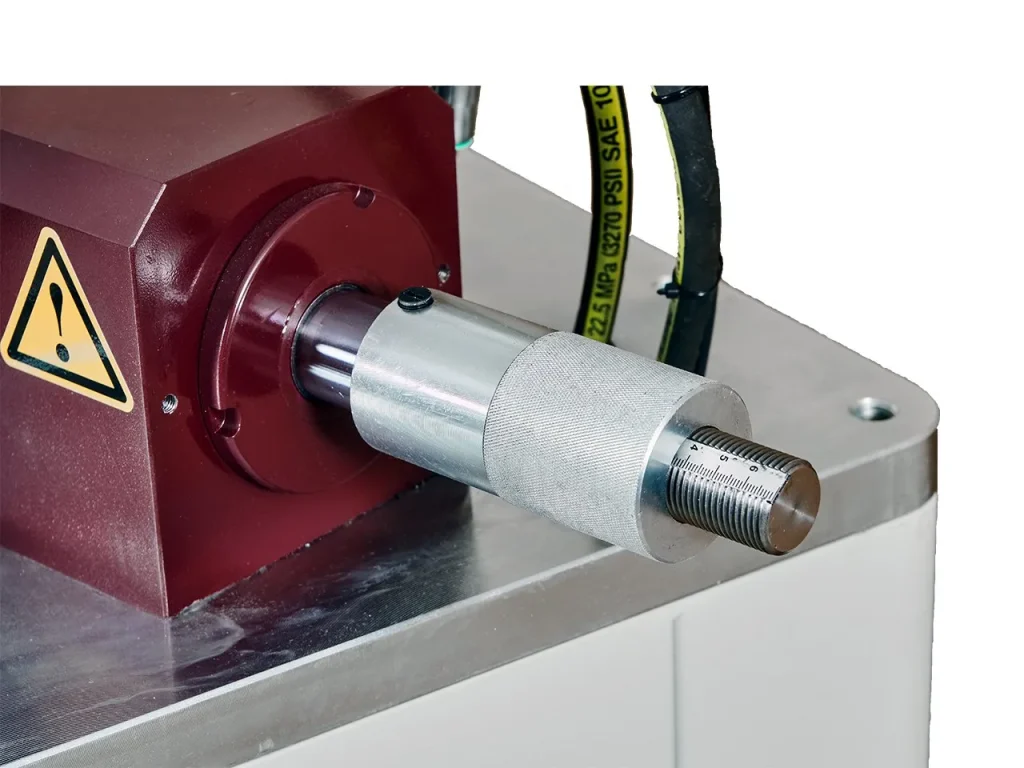

- Depth of adjustment can be precisely adjusted depending on profile thickness

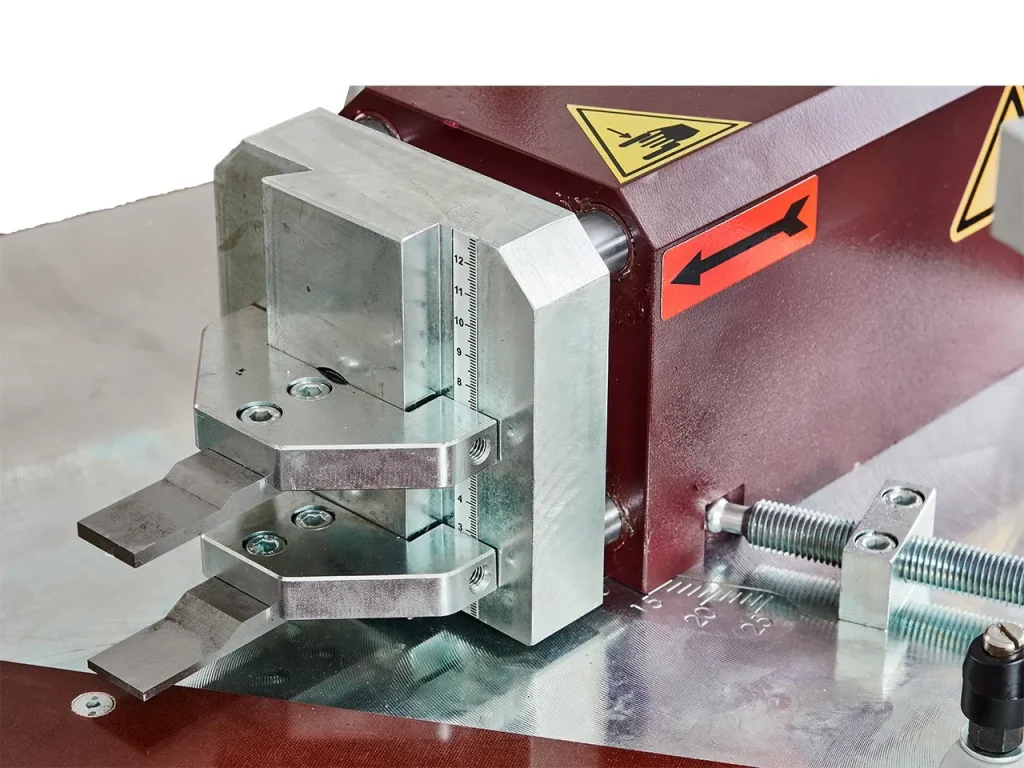

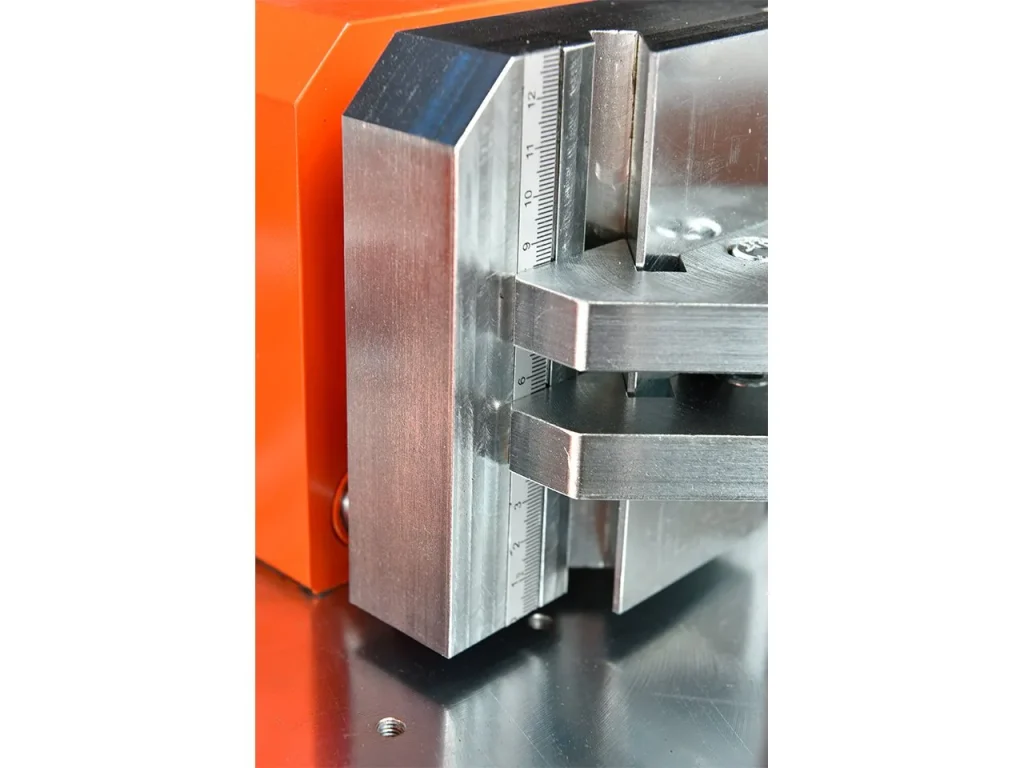

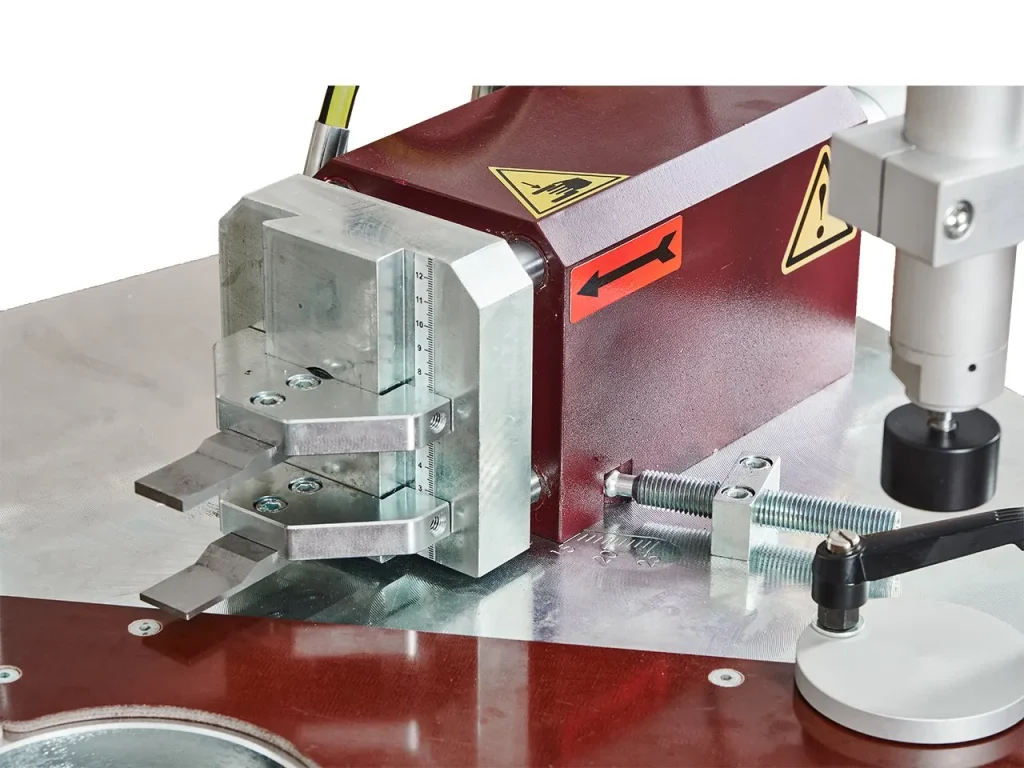

- Height of crimping knives, advancing of hyraulic cylinders and profile stop can be milimetrically adjusted

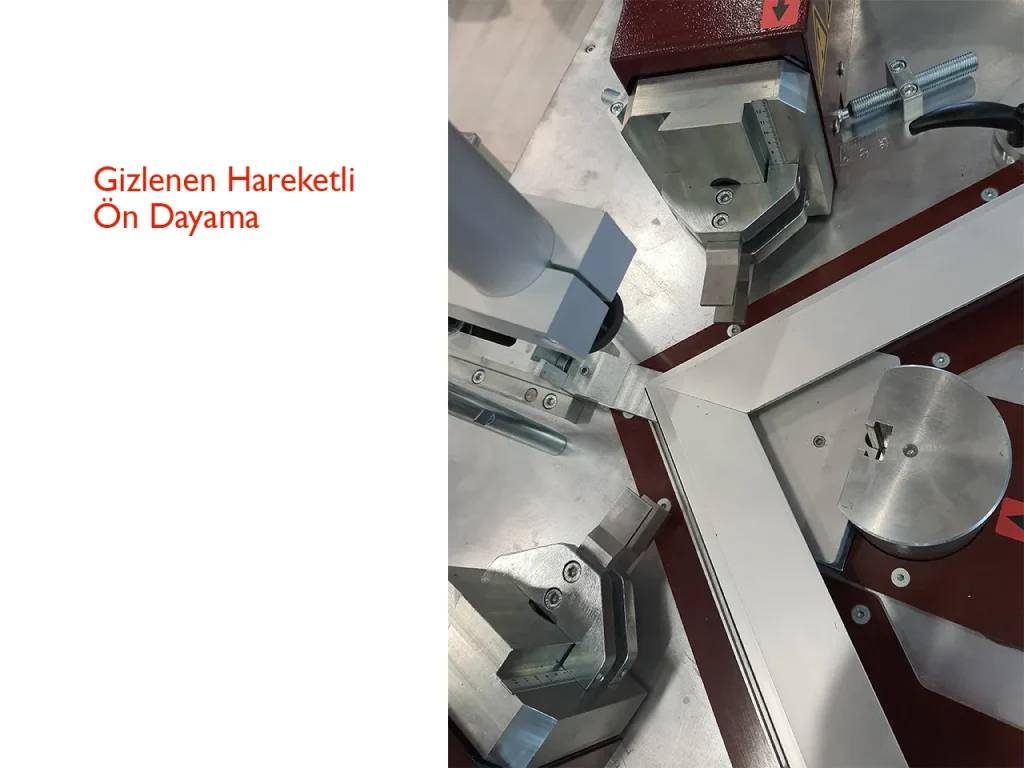

- Centering head automatically lowers after pressing
- Powerful hydraulic pump (5000 kg x 2pcs)
- Dual foot pedal for crimping action and pneumatic clamps
- Machine surface is equipped with Polyamid sheet to avoid scratching of profile surfaces

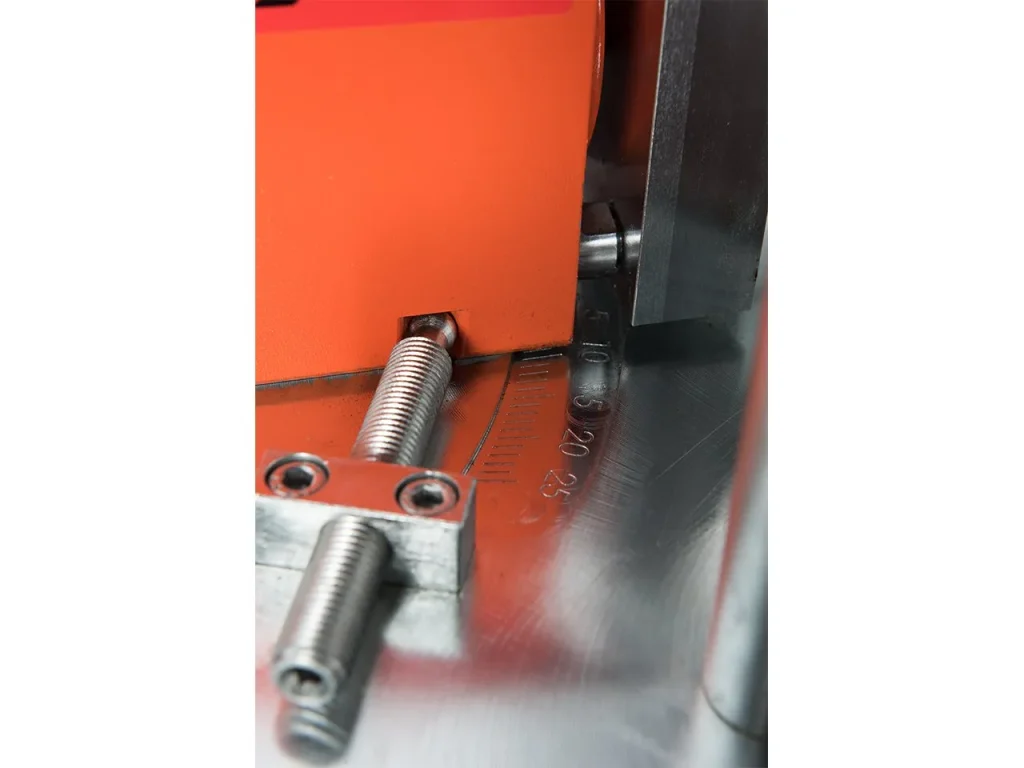

- Pressing feature at different points other than 90° thanks to the adjustable pressing unit
| Hydraulic Motor: | 1.1kW 50/60Hz |
| Hydraulic: | Max: 100 Bar |
| Bar/Air Cons.: | 6-8 Bar – 100 lt/min. |
| Profile Height: | Apis-1: 130 mm
Apis-2: 180 mm |
| Packing Size: | Apis-1: 115x125x139 cm
Apis-2: 115x125x145 cm |
| Machine Size: | Apis-1: 95x130x115 cm
Apis-2: 95x130x120 cm |
| Machine Kg: | Apis-1: 540
Apis-2: 550 |
- 2 pcs.Conveyor
- 2 crimping knives of each size 3 mm, 5 mm and 7 mm
- Custom crimping knives set
- Knife Cassette System
